About This

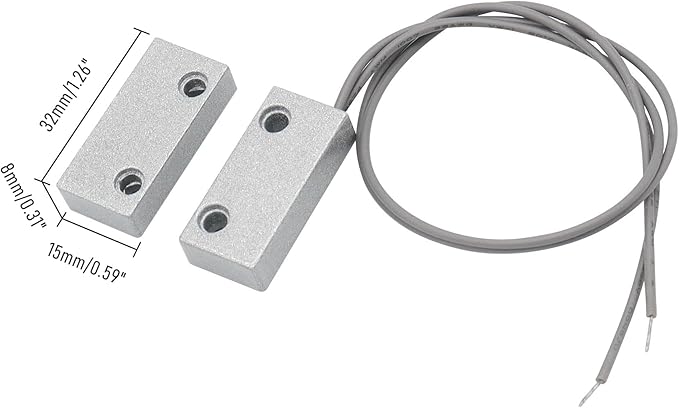

• 【Size】Body size(approx.): 32*15*8 32*15*8mm(L*W*H), Cable length: 260mm/10.2', Action Distance:20-30mm/0.8'-1.2', package include 1 pair.

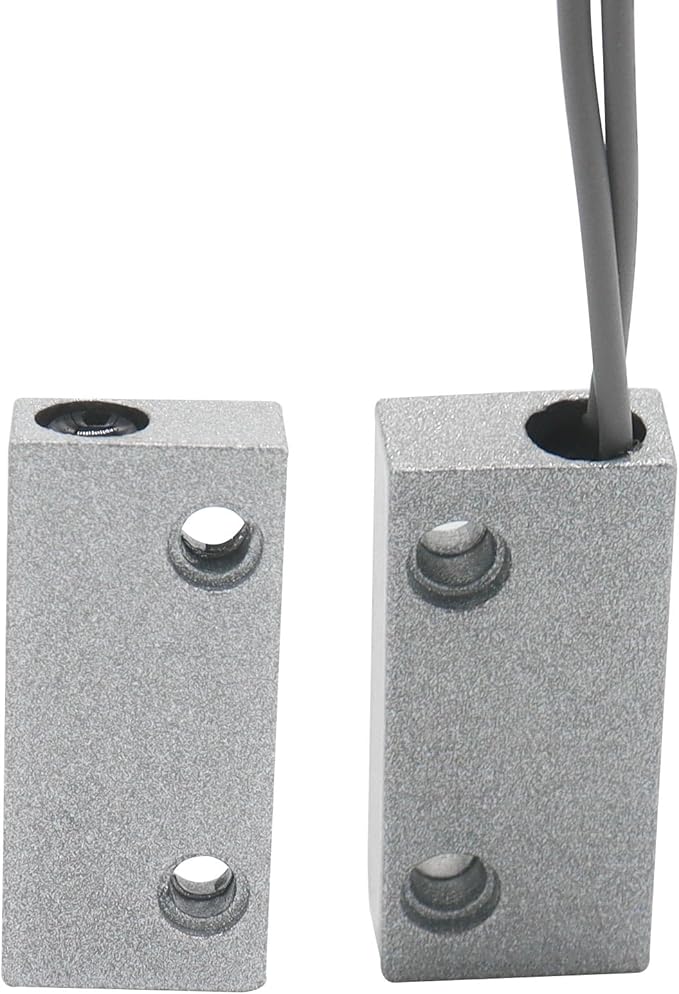

• 【Material】The magnetic switch alarm is with zinc alloy housing for better rust resistance, durable and high strength.

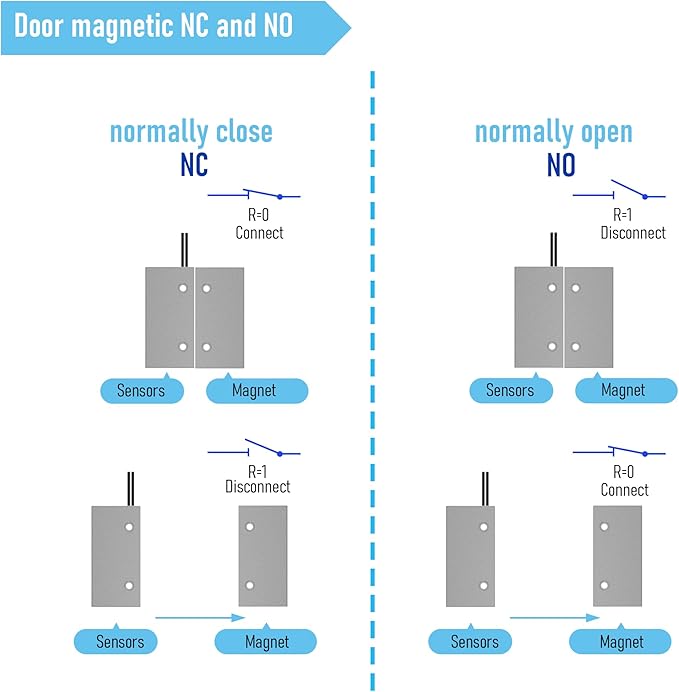

• 【NO/NC】Normally open /normally closed type with 3 wire, Pls choice N.O.or N.C. according to your need.

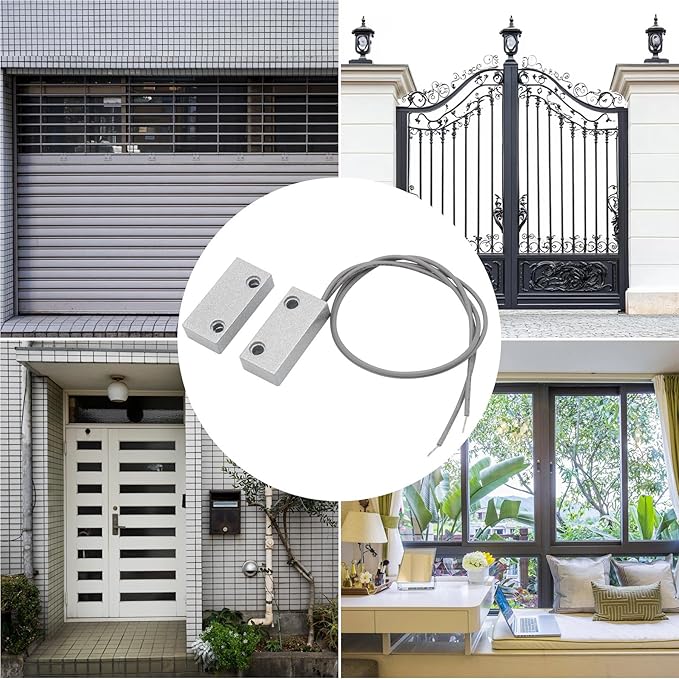

• 【Application】This magnetic contact switch is usually used for metal door/windows include rolling Door. The door contact can be used with an access control or anti-theft alarm system.
• 【Note】The Magnetic Door Switch must be installed as per the sensing distance. It can only provide a switch signal to the transmitter. It can't directly load the power, nor directly connect the lamp.

Overview

• Operation Mode : automatic
• Contact Type : Normally Open/Closed
• Connector Type : Screw
• Brand : FOCMKEAS
• Terminal : Screw
• Item dimensions L x W x H : 1.26 x 0.59 x 0.31 inches
• Circuit Type : 1-way
• Mounting Type : Surface Mount
• Number of Positions : 1
• Control Method : Touch
• Switch TypeReed Switch : MaterialZinc Alloy
• : Switch TypeReed Switch
• : MaterialZinc Alloy
