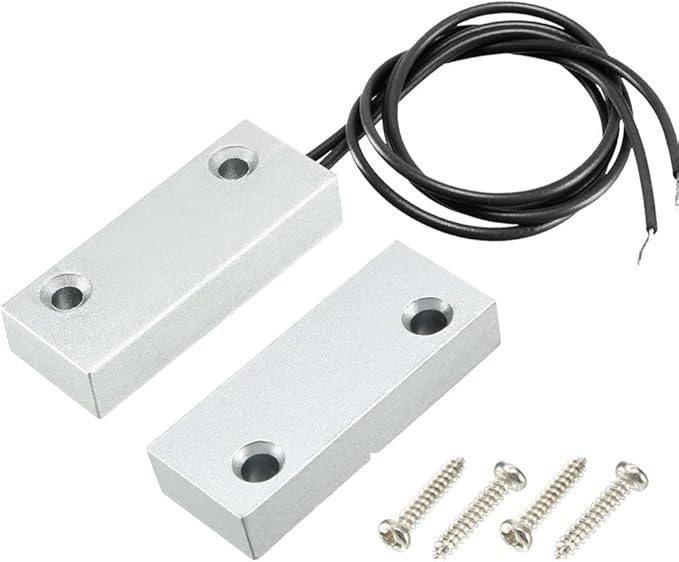

Gebildet Rolling Door Contact Magnetic Reed Switch Alarm with 2 Wires for NC. Applications MC-52
Gebildet Rolling Door Contact Magnetic Reed Switch Alarm with 2 Wires for NC. Applications MC-52
Regular price
$13.49 USD
Regular price
Sale price
$13.49 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
About This
- [Specification] - Current: 0.5A ; Voltage: 100V ; Power Rating: 10W; Action Distance: 15mm

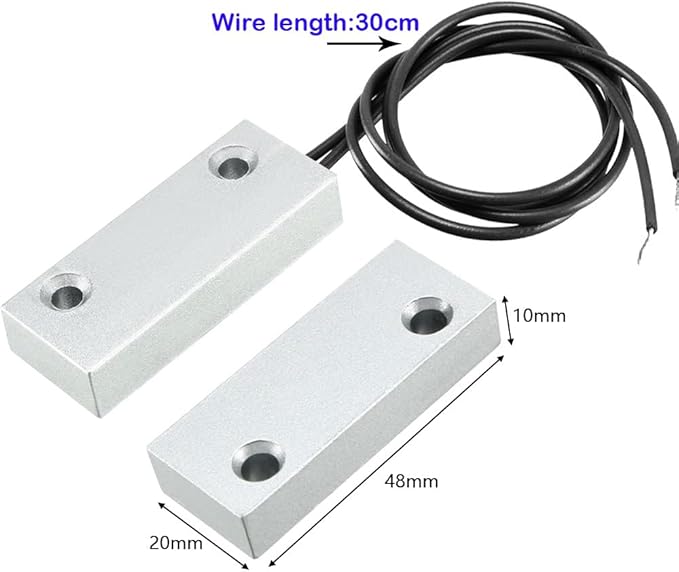

- [Dimension] - Cable Length: 30cm/11.8'; Total Size: 48.7mm x 19.5mm x 10 mm/1.92 x 0.77 x 0.39 inch (L*W*H)
- [Material] - The magnetic switch alarm is with durable zinc alloy housing for better rust resistance

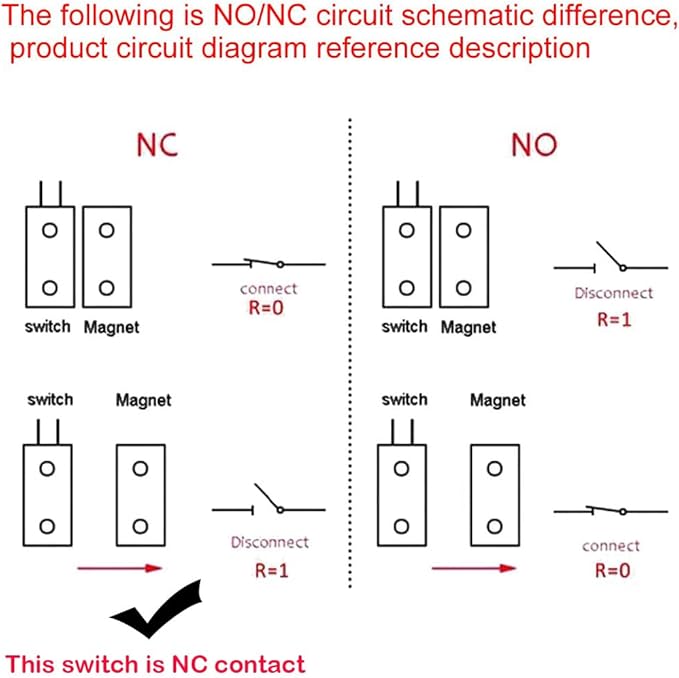

- Normally Closed: When the magnet together, the circuit is conductive( light on ); when the magnet separates, the circuit is not conductive ( light off )
- [Applications] - The Rolling Door Contact is designed for use with window and door alarm systems, such as garage, industrial warehouse and shops, etc.
Overview
- Operation Mode : automatic
- Current Rating : 0.5 Amps
- Operating Voltage : 100 Volts
- Contact Type : Normally Closed
- Connector Type : Wire Leads
- Brand : Gebildet
- Terminal : Through Hole
- Circuit Type : 1-way
- Mounting Type : Flush Mount
- Color : Silver-E1280T
- Switch TypeReed Switch : MaterialZinc Alloy
- : Switch TypeReed Switch
- : MaterialZinc Alloy
