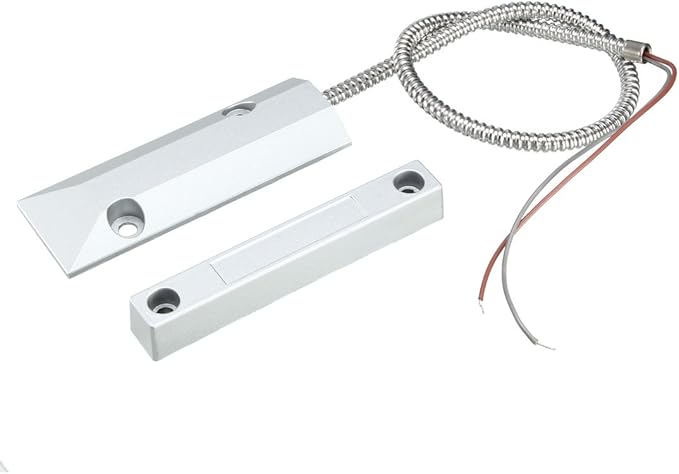

uxcell Rolling Door Contact Magnetic Reed Switch Alarm with 2 Wires for N.O. Applications OC-55
uxcell Rolling Door Contact Magnetic Reed Switch Alarm with 2 Wires for N.O. Applications OC-55
Regular price
$27.59 USD
Regular price
Sale price
$27.59 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
About This
- [Specification] - Current: 0.5A ; Voltage: 100V ; Power Rating: 10W; Action Distance: 40~50mm

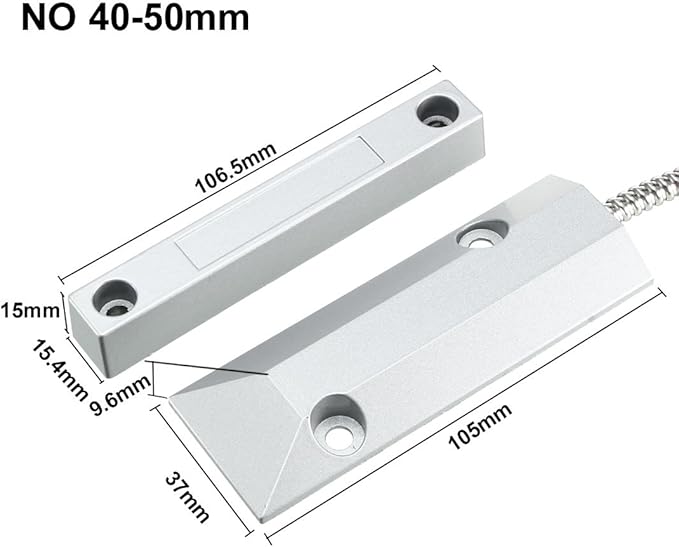

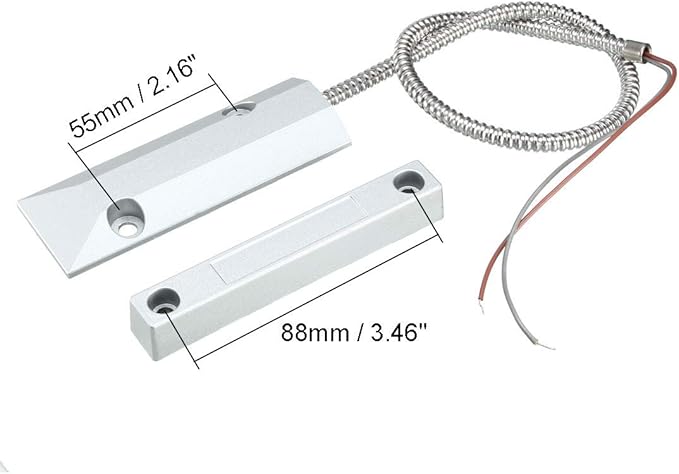

- [Dimension] - Cable Length: 50cm/19.7'; Total Size: 105 x 37 x 9.6mm, 106.5 x 15.4 x 15mm (L*W*H)

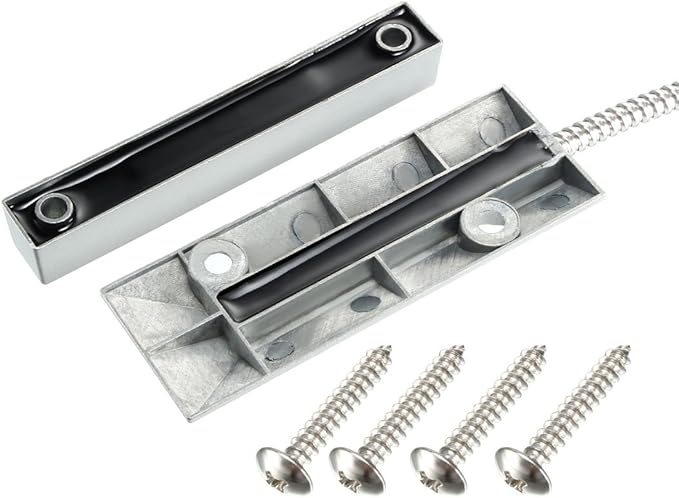

- [Material] - The magnetic switch alarm is with durable zinc alloy housing for better rust resistance

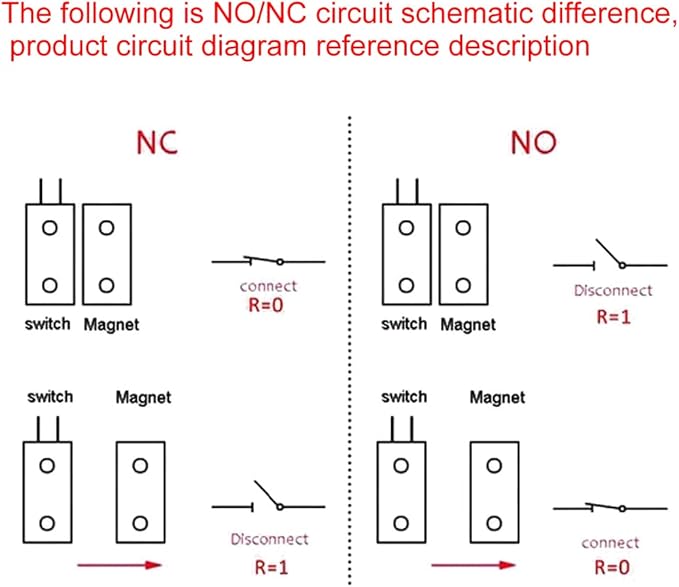

- [Normally Open] - N.O. means Normally Open: when the magnet separates, the circuit is conductive( light on ); When the magnet together, the circuit is not conductive ( light off ). When make order, pls check carefully!
- [Applications] - The Rolling Door Contact is designed for use with window and door alarm systems, such as garage, industrial warehouse and shops, etc.
Overview
- Operation Mode : Off
- Current Rating : 0.5 Amps
- Operating Voltage : 100 Volts
- Contact Type : Normally Open
- Connector Type : Screws
- Brand : uxcell
- Terminal : Screw
- Circuit Type : 1-way
- Mounting Type : Surface Mount
- Actuator Type : Plunger
- Switch TypeReed Switch : MaterialStainless Steel
- : Switch TypeReed Switch
- : MaterialStainless Steel
